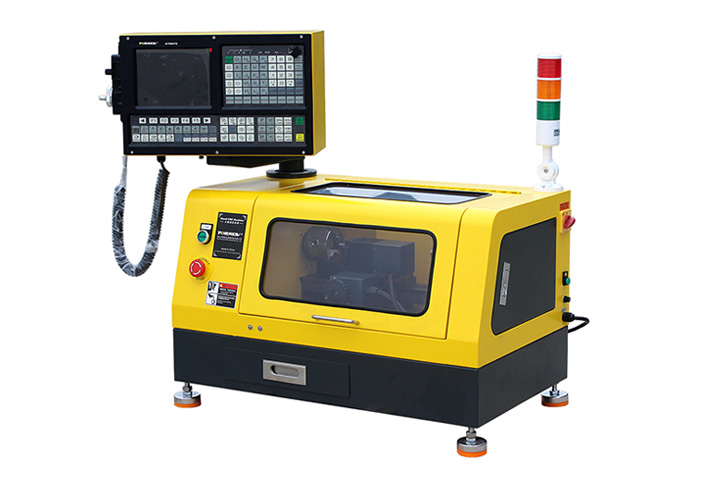

CK140 Benchtop CNC Lathe OF Video
CK140 Benchtop CNC Lathe OF Video
(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System
(3). ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port, DNC function of USB.
(7). Control speed of G code.
(8). Selection of high -quality casting materials,more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
| Technical parameters |
|
|---|---|
| Turning diameter over bed(max) | 140mm |
| Travel across slide | 75mm |
| Chuck diameter | 80mm |
| Spindle speed | 100-2000r/min(control speed of G code) |
| Spindle through-hole | 11mm |
| Spindle mount | MT2 |
| Spindle motor power | 150W |
| X travel | 70mm |
| Z travel | 160mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | KY 980Tc Turning CNC System |
| Tool position | 4 |
| Tool dimension | 8×8mm |
| Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Positioning accuracy | 0.02mm |
| Repeatability accuracy | 0.02mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 50/65KG |

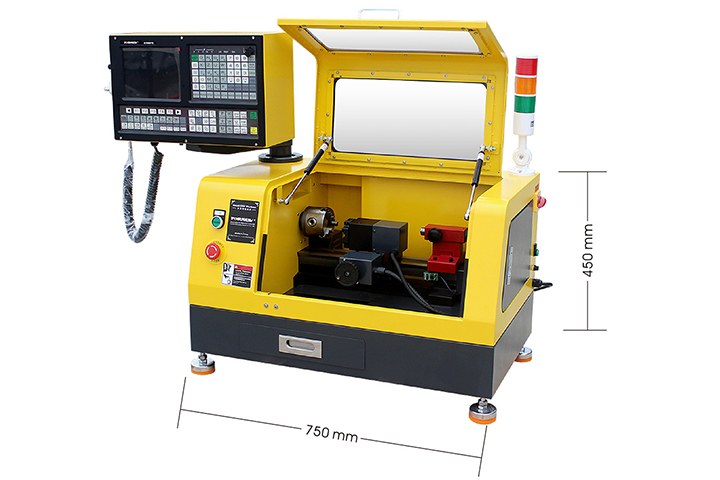

| Overall dimension | 750*450*450mm |
| Packing size | 850*470*470mm |
We Provide high performance manufacturing solutions at a price small manufacturers can afford.
