  • Products

    • Yornew CK210sp Mini CNC Lathe
    • Yornew Education & Training CNC
    • Education & Training CNC
    • Micro CNC lathe

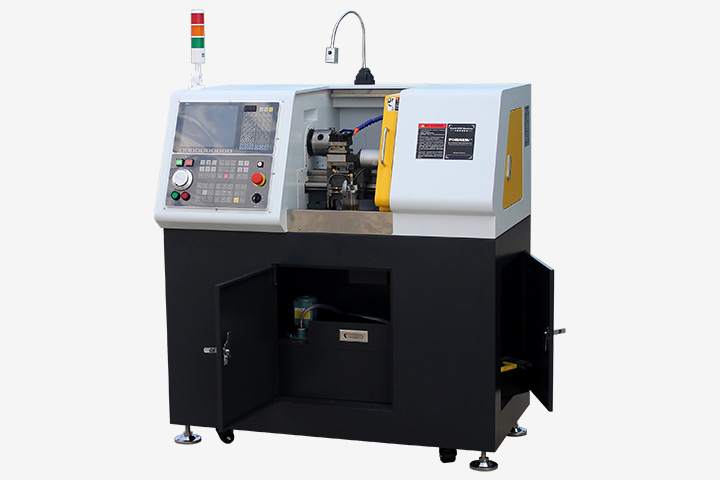

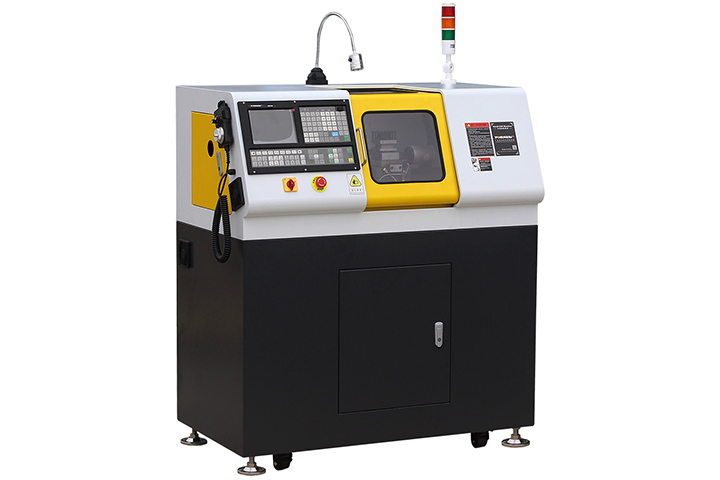

    Product No: CK210B

    Product Name: Small CNC Lathe


    • High performance 2 axis Lathe CNC controller.
    • 7 inches color screen, interface can be made of parameter selection in both Chinese and English.
    • The standard spec includes MPG hand wheel.
    • Selection of high -quality casting materials,more compact,High strength guide way.

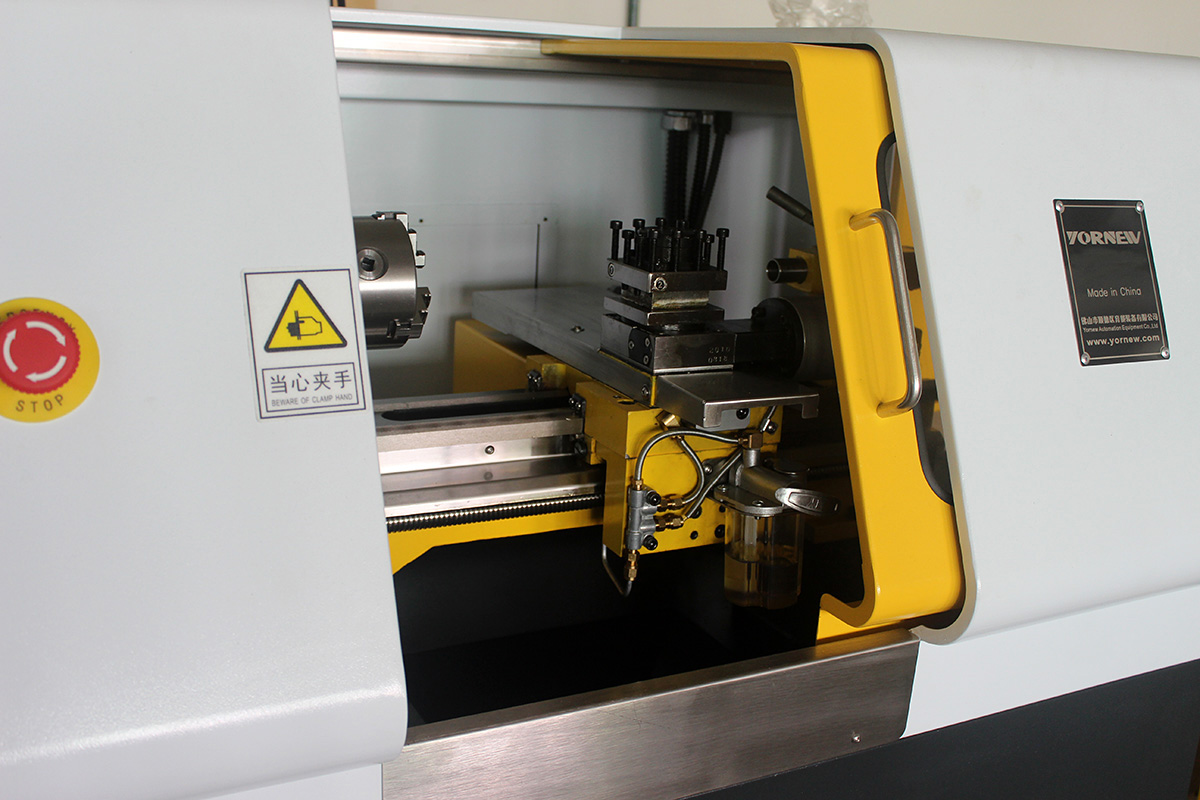

    • Automatic 4 positions tool post.
    • Auto power off when door open
    • High quality 2 axis AC Servor.
    • USB and RS232 port, DNC function of USB.
    • Control speed of G code.
    • Best choice for DIY or Hobby user and Education & Training CNC.

    CK210B Small CNC Machines of maching Video

    CK210B Small CNC Machines of maching Video

    benchtop top CNC machines
    benchtop top CNC Lateh
    yornew 980TB system

    Features

    (1).X\Z axis servo motor, Automatic 4 positions tool post.

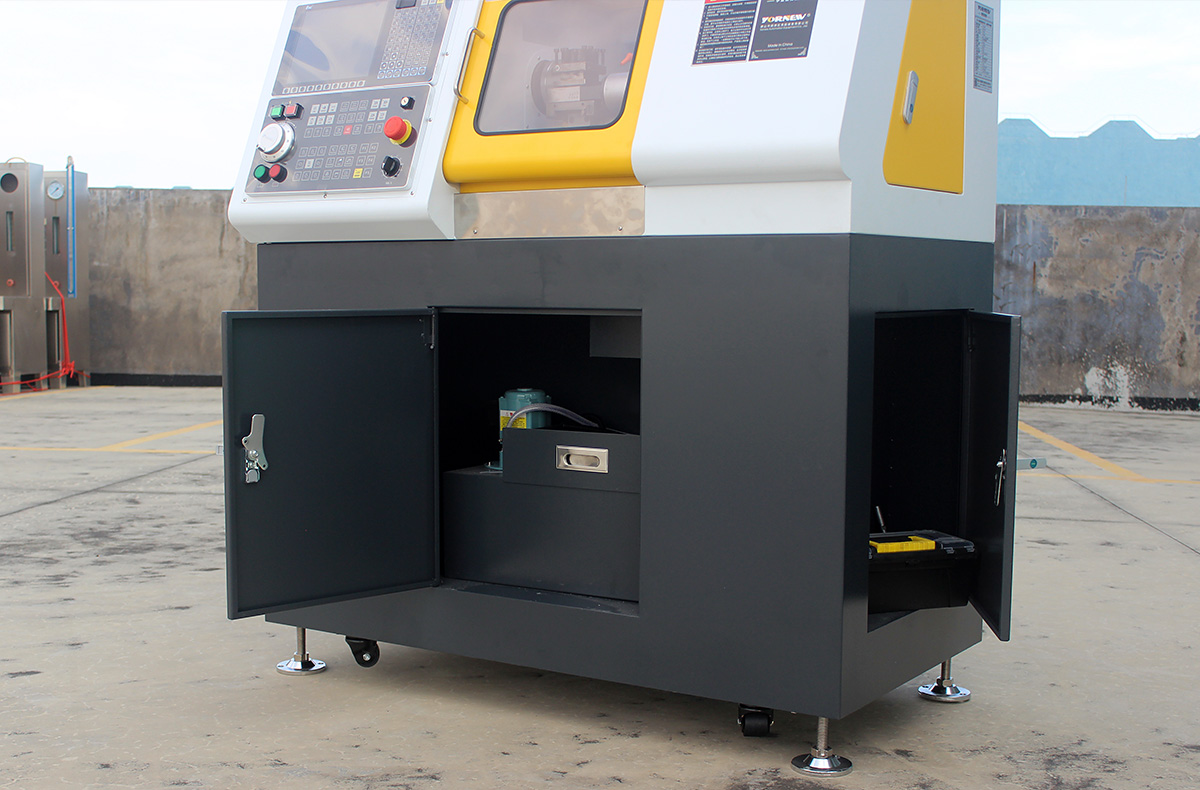

    (2).With sink and nozzles.
    (3).YORNEW 980Tc Turning CNC System,Optional siemens 808D
    (4). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
    (5).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
    (6). The standard spec includes MPG hand wheel.
    (7). USB and RS232 port, DNC function of USB.
    (8). Network interface, supporting for remote monitoring and DNC file transfer processing.
    (9). Control speed of G code.
    (10). Selection of high -quality casting materials,more compact.
    (11). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
    (12). 220VAC or 110VAC single-phase AC power supply.

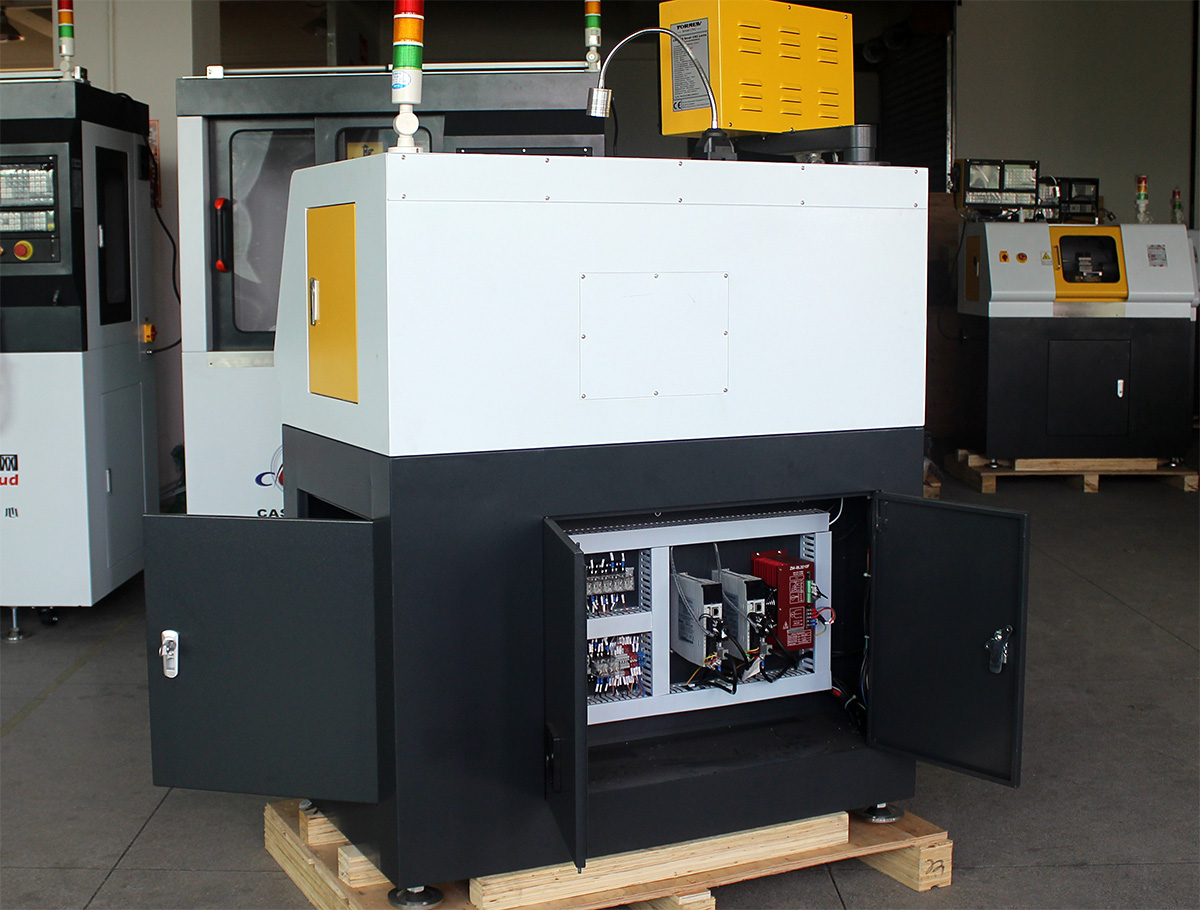

    (13). Safety electrical components of high quality.
    (14). Auto power off when door open.
    (15). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.


    benchtop top CNC machines
    benchtop top CNC machines
    benchtop top CNC machines
    benchtop top CNC machines
    benchtop top CNC machines

    Technical parameters
    Turning diameter over bed(max) 210mm
    Chuck diameter 100mm
    Spindle speed 100-1750r/min(control speed of G code)
    Spindle through-hole 26mm
    Spindle mount MT4
    Spindle motor power 1100W
    X travel 80mm
    Z travel 290mm
    X/Z motor 400W Servo Motor
    The max moving speed 4000mm/min
    The max feeding speed 2000mm/min
    Control system YORNEW 980Tc Turning CNC System,Optional siemens 808D
    MPG handwheel 4 axis
    Tool position 4
    Tool dimension 10*10mm
    Tailstock taper MT2
    Tailstock sleeve diameter 20mm
    Travel of tailstock 25mm
    Positioning accuracy: 0.02mm
    Repeatability accuracy 0.03mm
    Power 230VAC / 120VAC
    Weight(NW/GW) 280/320KG

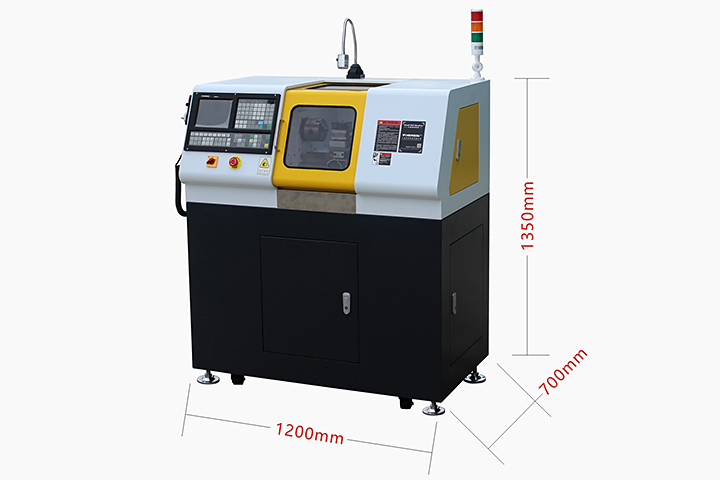

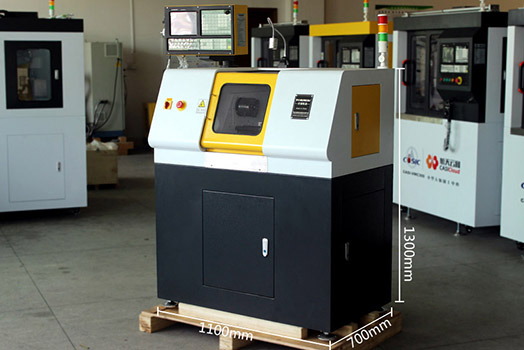

    Overall dimension 1100*700*1300mm
    Packing size 1200*850*1800mm
    Micro CNC Lathe Optional Accessories
    CE Certificate
