    Product No: XK200

    Product Name: Micro CNC Milling


    • High performance 4 axis milling CNC controller.
    • Using ARM high performance CPU and ultra large scale programmable devices FPGA, real time multi task control and hardware interpolation technology, to realize the high efficiency of μm-level precision processing.
    • The standard spec includes MPG hand wheel.
    • High-precision linear guide
    • Selection of high -quality casting materials,more compact.
    • Semi-automatic lubrication system,protect the rail life.
    • High quality 3 axis step motor,high torque brushless motor.

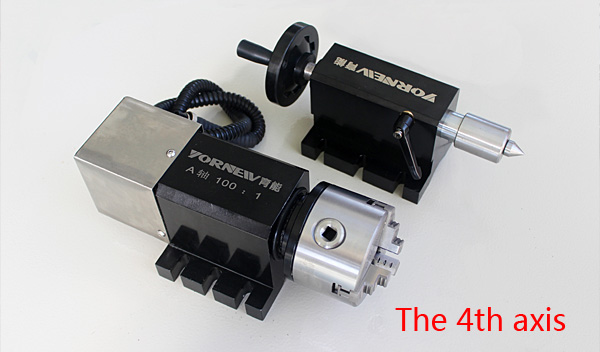

    • Pre-installed 4 axis fast interface.
    • Best choice for DIY or Hobby user and Education & Training CNC.

    Features

    (1). High performance 4 axis milling CNC controlle.
    (2).The standard spec includes electronic hand wheel.
    (3).Selection of high -quality casting materials,more compact.
    (4).High-precision linear guide.
    (5).X, Y, Z, A four axis micron level interpolation accuracy controlling;
    (6).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
    (7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
    (8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
    (9).With the automatic aligning instrument.
    (10).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
    (11).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
    (12). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
    (13).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
    (14).7 inch super large colorful(800*480) LCD screen.
    (15).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

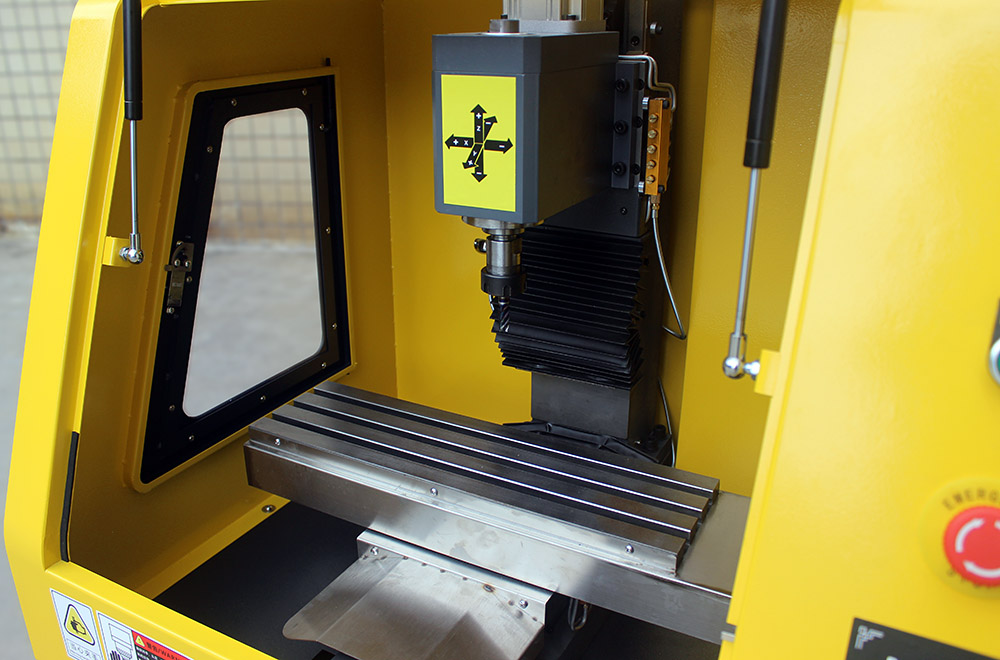

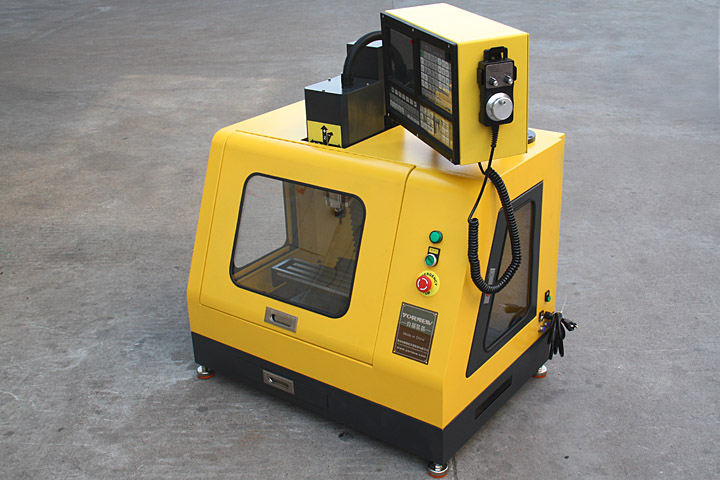

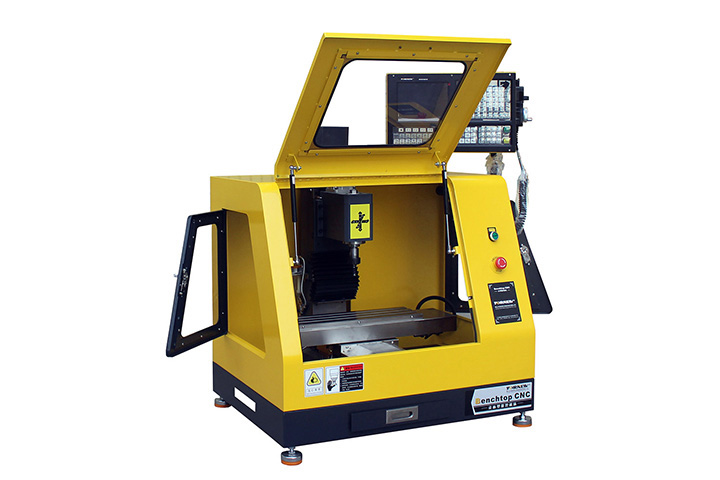

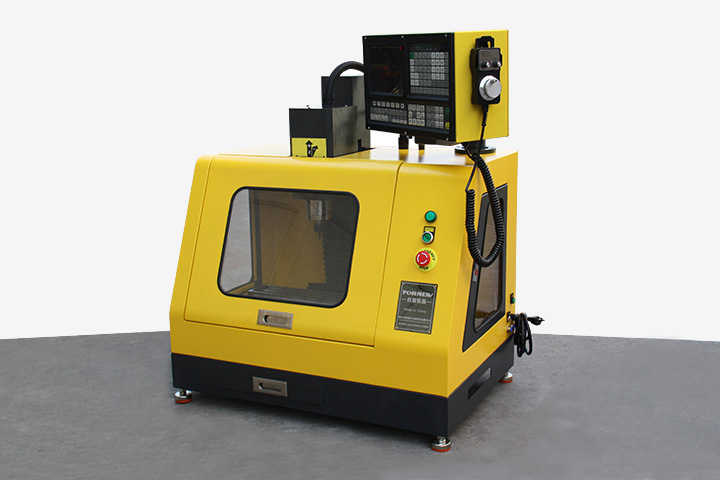

    XK200 Mini CNC Milling
    XK200 Mini CNC Milling
    YORNEW CNC
    YORNEW CNC


    Technical parameters
    X axis travel 230mm
    Y axis travel 130mm
    Z axis travel 220mm
    Tool DIA. range 2-12mm or 4-16mm
    Control system KY1000MC CNC Controller
    MPG hand wheel 4 axis
    Spindle motor 2.2kw or 750W
    Spindle speed 100-24000r/min or 300-3500r/min
    The max moving speed 2000mm/min
    The max feeding speed 1000mm/min
    Positioning accuracy 0.02mm
    Repeatability accuracy 0.01mm
    Transmission ball screw
    guide rail High-precision linear guide
    Table size 460*130mm
    T slot (amount*width) 35*12mm
    Max. load 30kg
    Table structure Full cast iron
    Power 220VAC / 110VAC
    Weight(NW/GW) 165/200kg

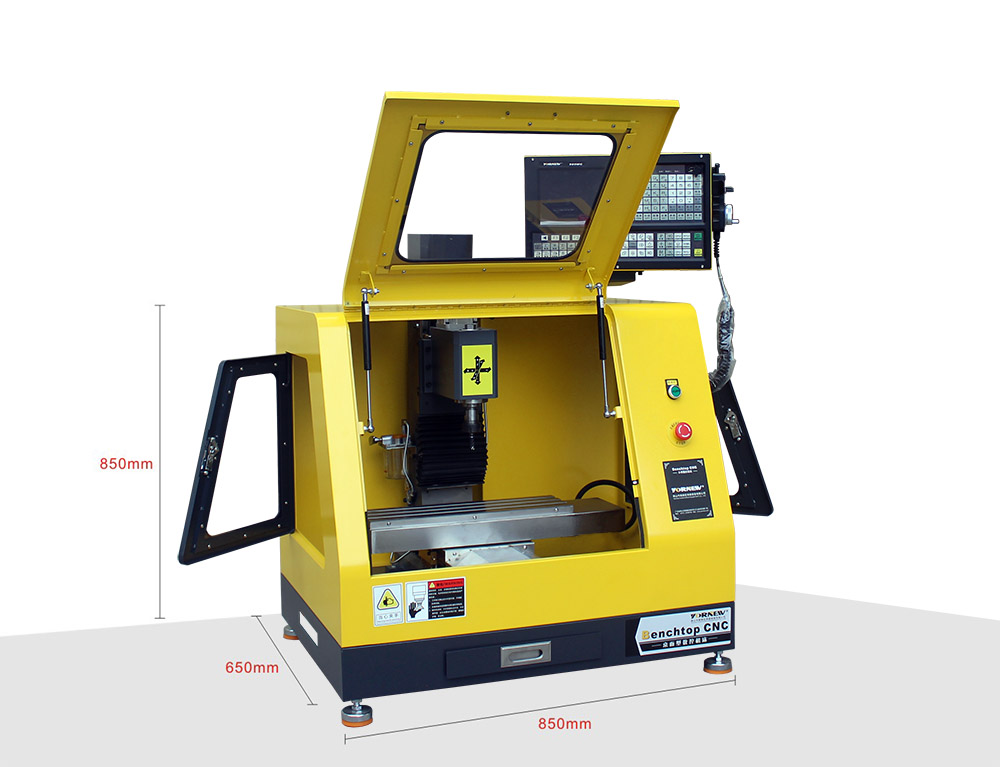

    Overall dimension 850*650*850mm
    Packing size 930*750*1200m

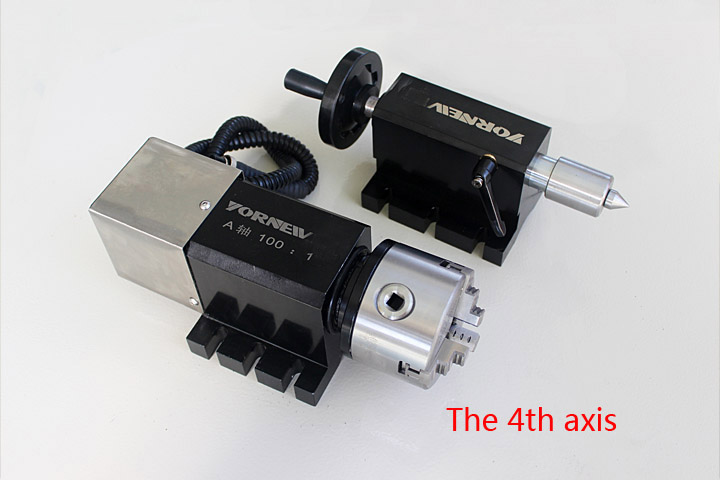

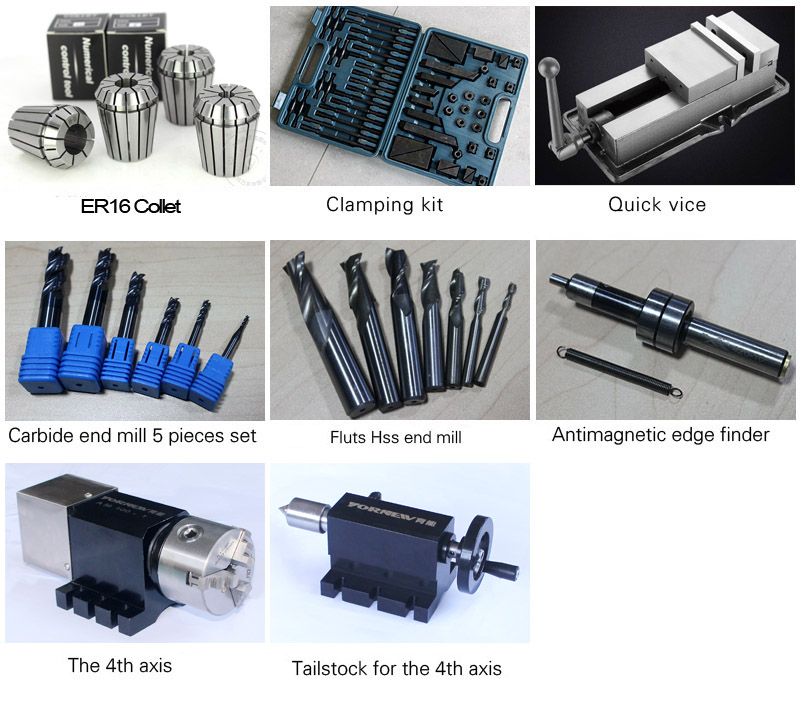

    Micro CNC Milling Machines Optional Accessories
    XK200 Micro CNC Milling
    XK200 Micro CNC Milling
    XK200 Micro CNC Milling
    XK200 Micro CNC Milling
    XK200 Micro CNC Milling
    XK200 Micro CNC Milling
    XK200 Mini CNC Milling
    XK200 Mini CNC Milling
    XK200 Small CNC Milling
    XK200 Small CNC Milling

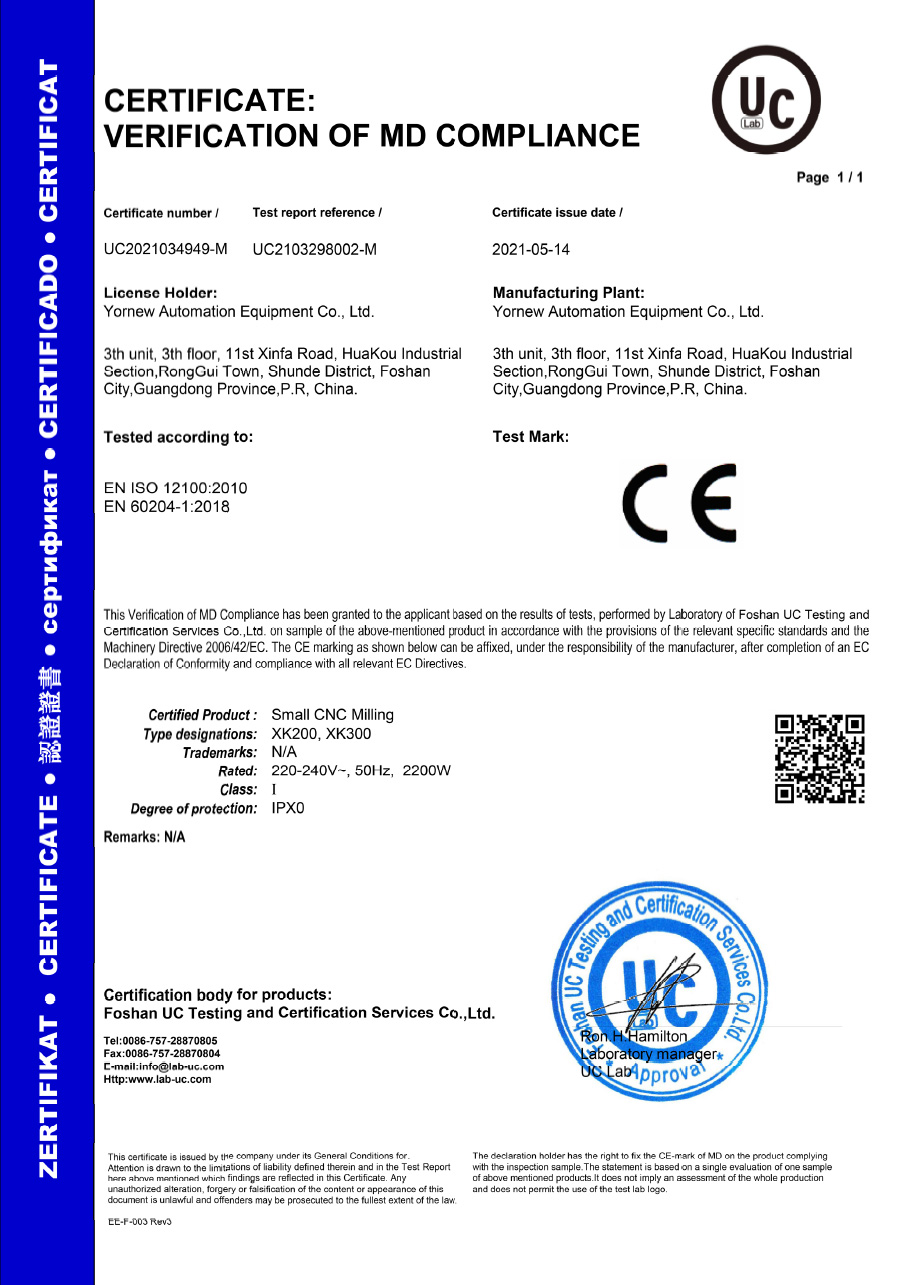

    CE Certificate
